  • HARDWARE CONFIGURATION: 16 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports, 2 SFP uplink ports; Compact form factor switch with Power budget of 120W and Perpetual PoE+ support for uninterrupted power to PoE devices even in case of switch reboot
  •  MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
  •  SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single ‘Auto-Secure’ command along with 802.1x support for all connected devices
  •  Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco’s trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
SKU: Switch-100032A Category:

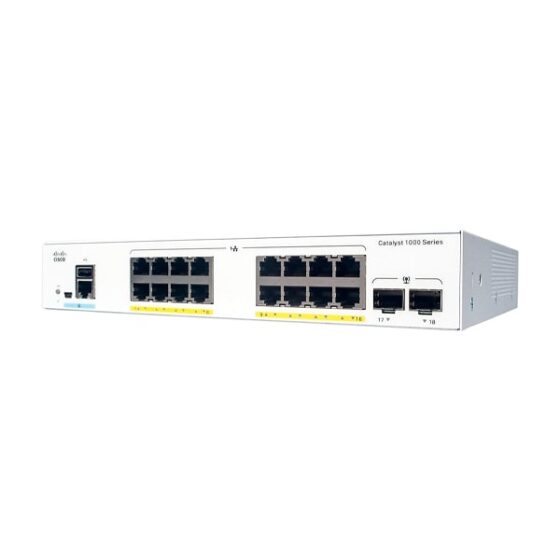

The Cisco C1000-16P-2G-L switch is a series of Cisco switches. The Cisco Catalyst 1000 Series switches extend the ability to expand purpose-built networks and the innovative hardware and software of the Catalyst 1000 to a broad set of applications. Catalyst 9500 series switches offer simplicity without compromise. Catalyst 1000 switches provide a series of security features that protect the integrity of the hardware as well as the software of all data it receives from the switch.

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

The Cisco Catalyst 1000 Series Switches provides these features:

  •  8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
  • 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+)


  •  Perpetual PoE+ support with a power budget of up to 740W
  • CLI and/or intuitive web UI manageability options
  •  Network monitoring through sampled flow (sFlow)
  •  Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
  •  Compact fanless models available with a depth of less than 13 inches (33 cm)
  • Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
  •  Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)


  • Product Code C1000-16P-2G-L
  • Description 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks
  • Gigabit Ethernet ports 16
  • Uplink interfaces 2 SFP
  • PoE+power budget 120W
  • Fanless Y
  • Dimensions (WxDxH in inches) 10.56 x 11.69 x 1.73
  • CPU ARM v7 800 MHz
  • DRAM 512 MB
  • Flash memory 256 MB
  • Forwarding bandwidth 18 Gbps
  • Switching bandwidth 36 Gbps
  • Forwarding rate(64—byte L3 packets) 26.78 Mpps

Console ports

  • RJ-45 Ethernet 1
  • USB mini-B 1
  • USB-A port for storage and Bluetooth console 1

Memory and processor

  • CPU ARM v7 800 MHz
  • DRAM 512 MB
  • Flash memory 256 MB


  • Operating temperature Seal level -5 to 50 deg C*
  • Up to 5,000ft (1500 m) -5 to 45 deg C
  • Upto 10,000 (3000 m) -5 to 40 deg C
  • Operating altitude 10,000 ft (3,000m)
  • Operating relative humidity 5% to 90% at 40C
  • Storage temperature -13 to 158F (-25 to 70C)
  • Storage altitude 15,000 ft (4500m)
  • Storage relative humidit 5% to 95% at 65C
